Pipe bevelling system with inner clamping
Clamping perpendicularly to axis

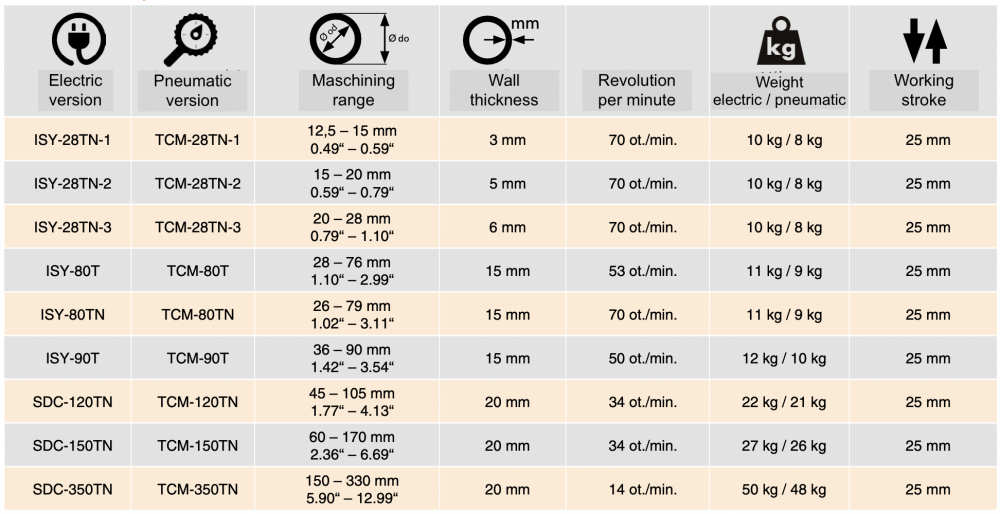

Robust portable pipe bevellers with total range Ø 12,5-330mm ( 0.49"- 12.99").

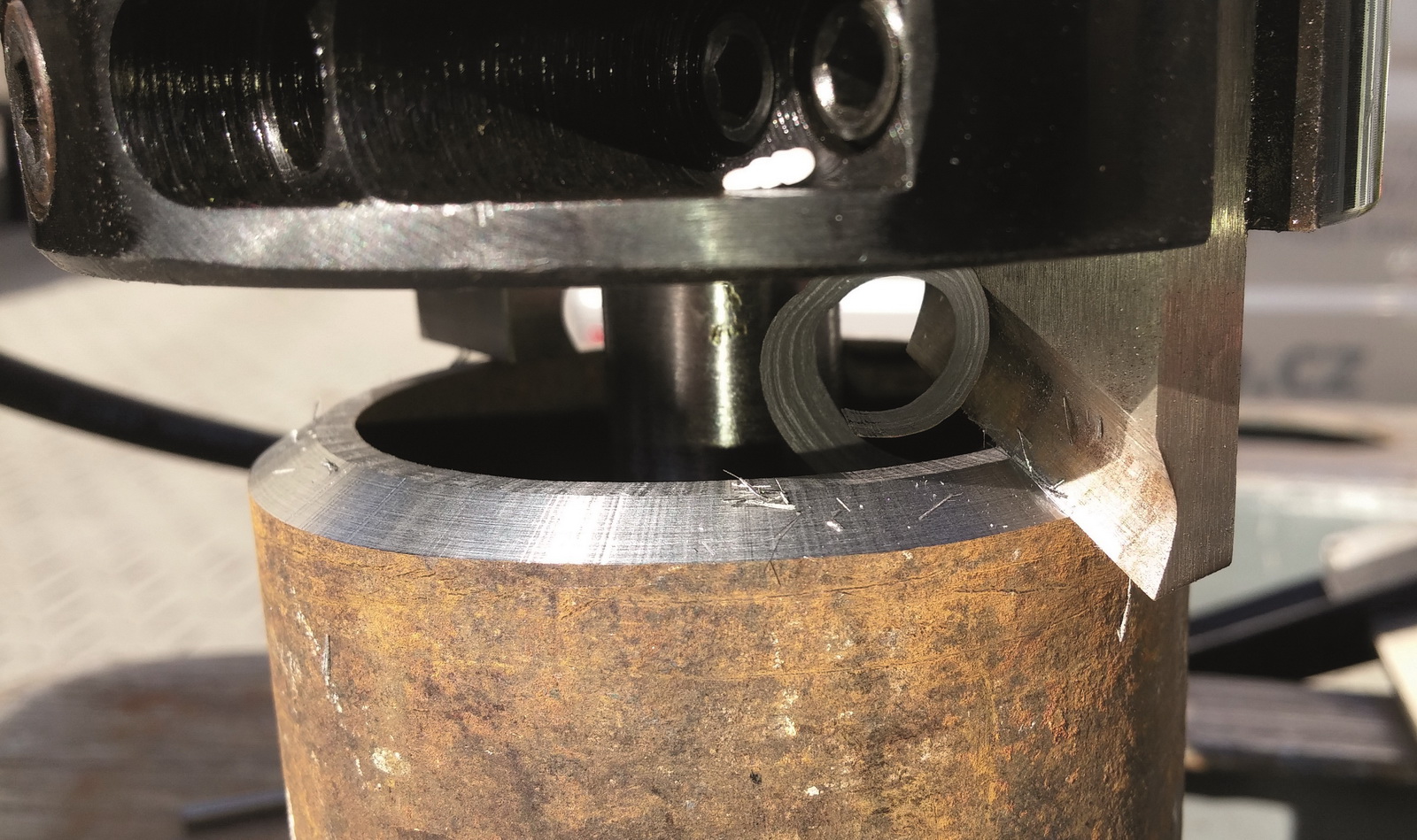

The machines are designed to straighten the front, create bevel and inner calibration of pipe diameter.
The angle and shape of bevel is optional.
When adjusted, the machine is able to get the ends of pipes rapidly and repeatedly ready for welding.Useful to all machinable metals, including stainless steels.

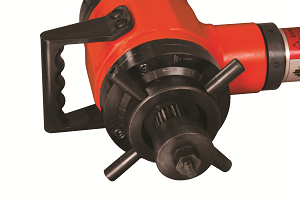

Concentric inner clamping is the guarantee of perfect securing and centring of the machine.
Clamping vertically to the pipe axis can present an advantage in specifically confined conditions.
Option to select electric or pneumatic drive.

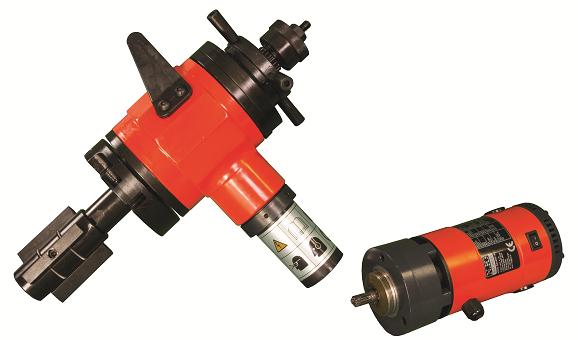

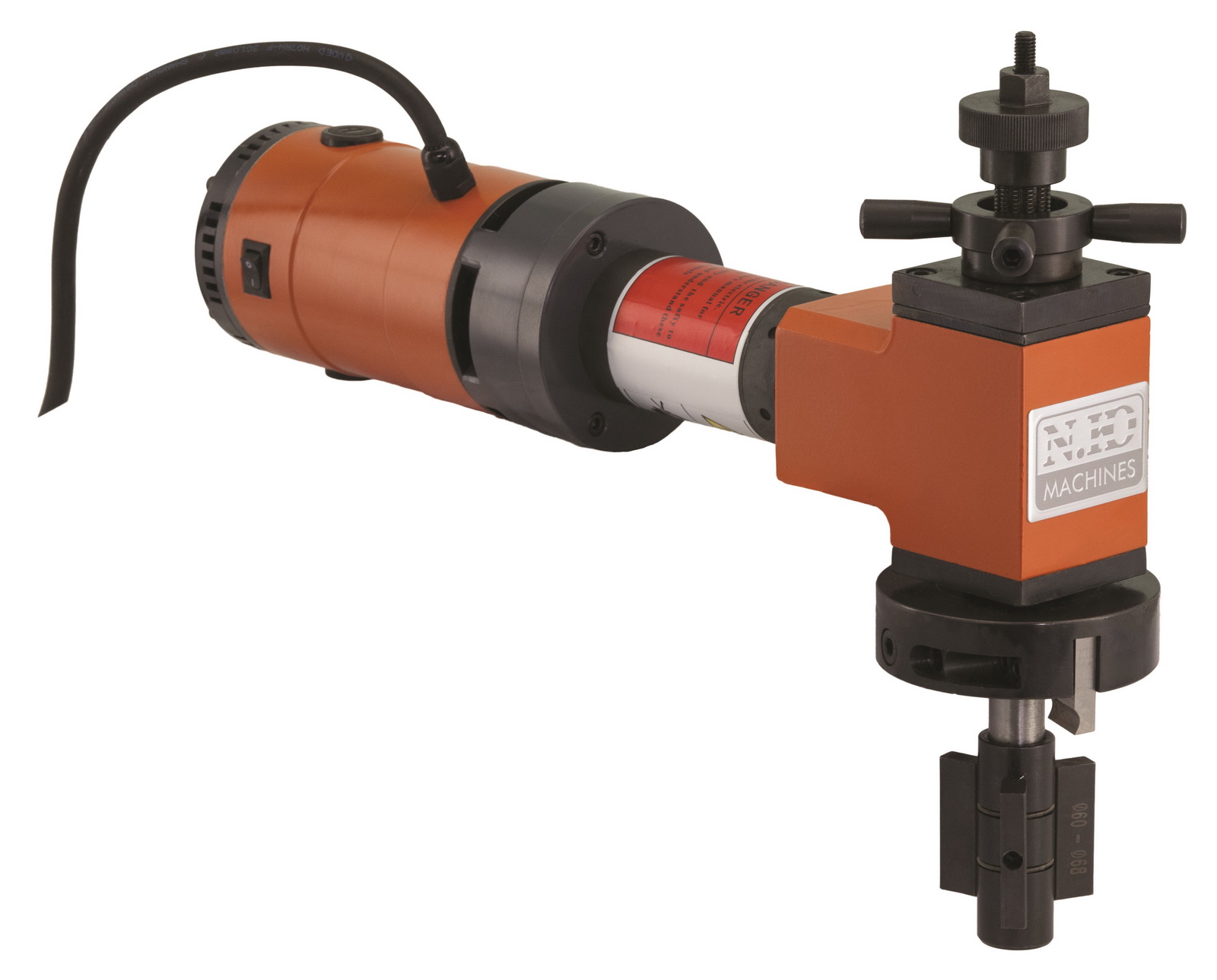

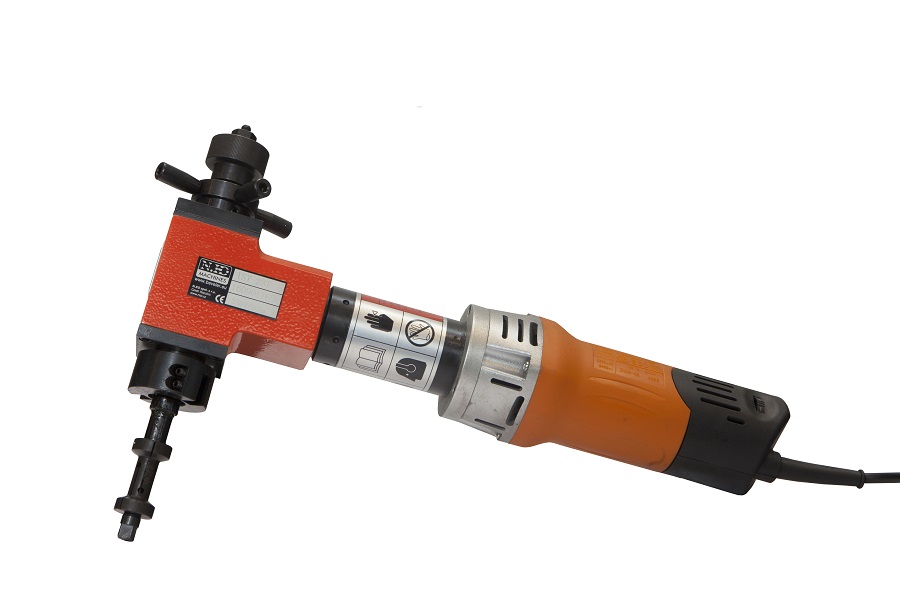

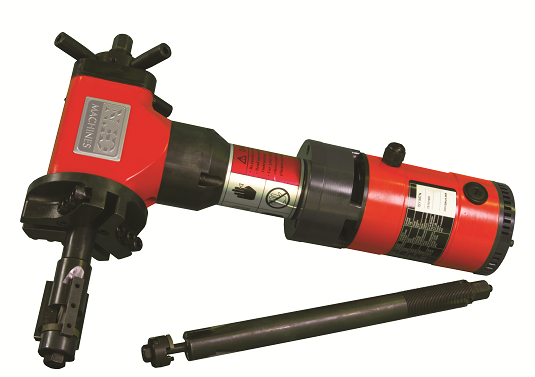

Electric machine versions:
The machine is fitted with high performance electromotor in a metal chassis with enhanced resistance.
Voltage:
220V/50Hz
110V/50Hz
Motor power 0.5 – 2.5 kW (depends on type)

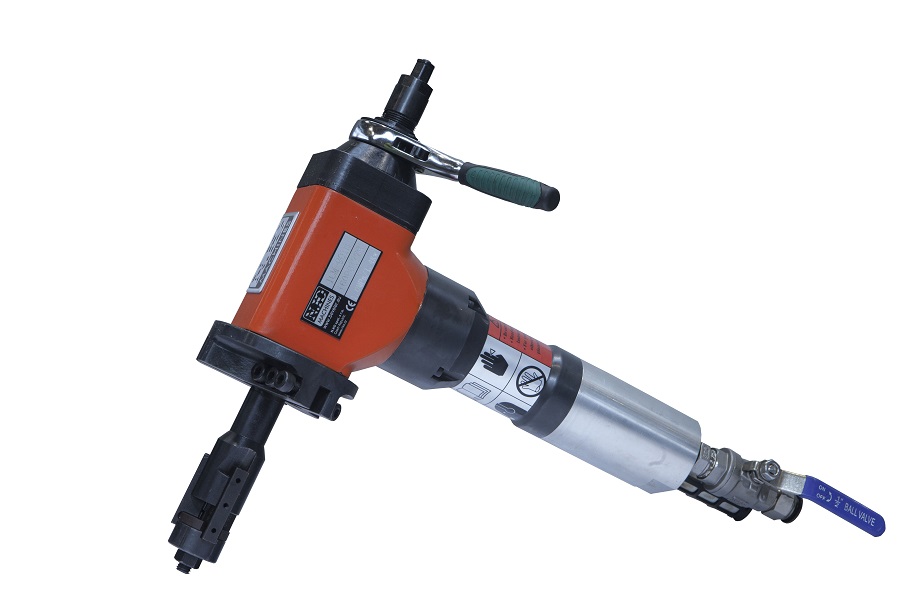

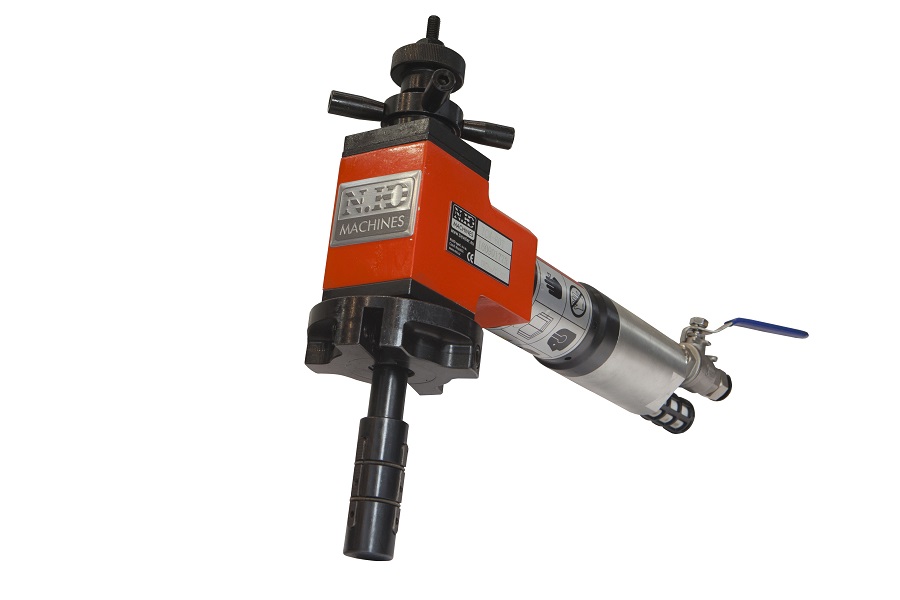

Pneumatic machine versions:
These drives are specially suitable in explosive environments.
Operating pressure: 0.6 – 1.5 Mpa
Required air flow 650 - 1200 l/min
(air supply must be equipped with filtration and lubrication unit)

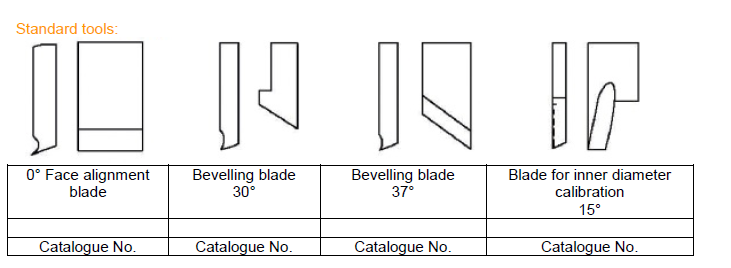

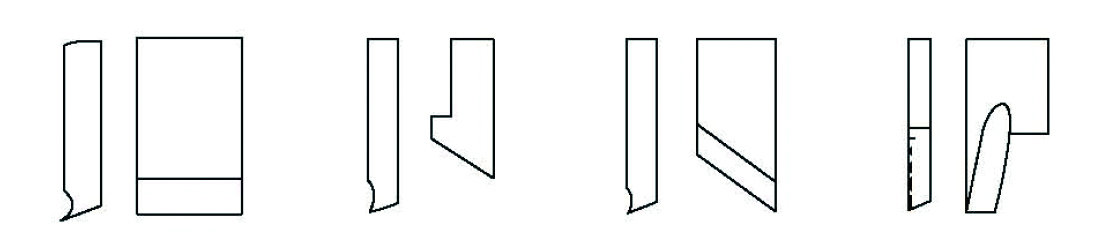

Other special blade designs on demand
Included in the price:
Bevelling system
Tools for operators
Standard tool kit
Transport packaging
