B2 AIR

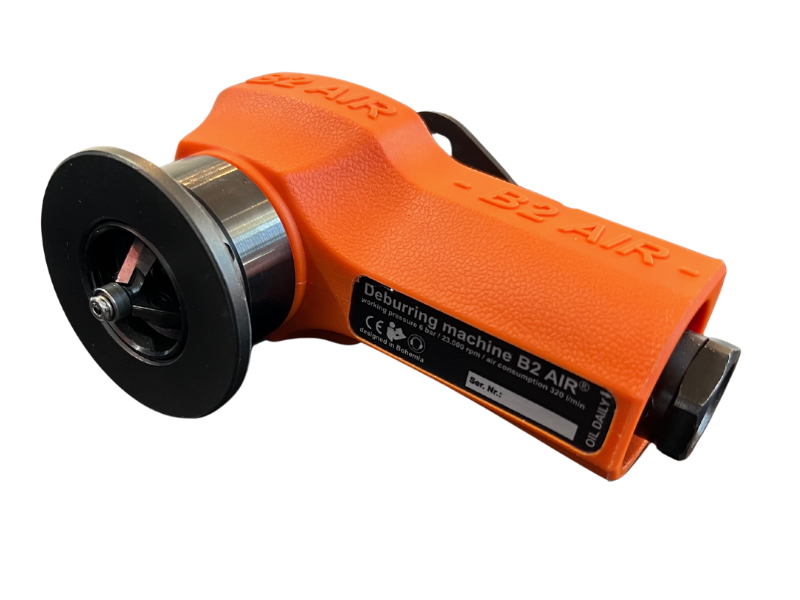

Deburring system B2 AIR
Pneumatic drive.
(Max. width of bevel 2 mm / 0.08 in.)

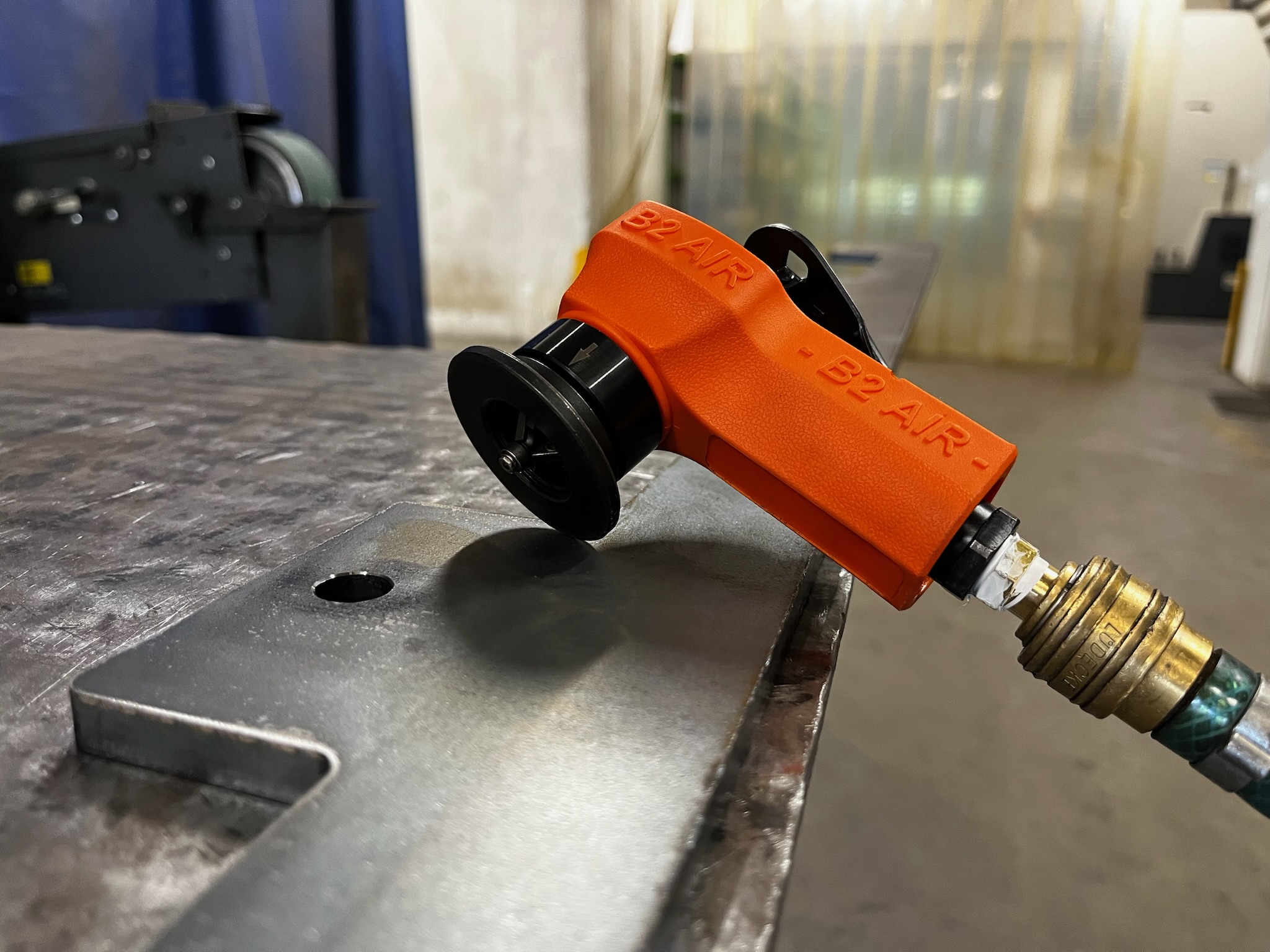

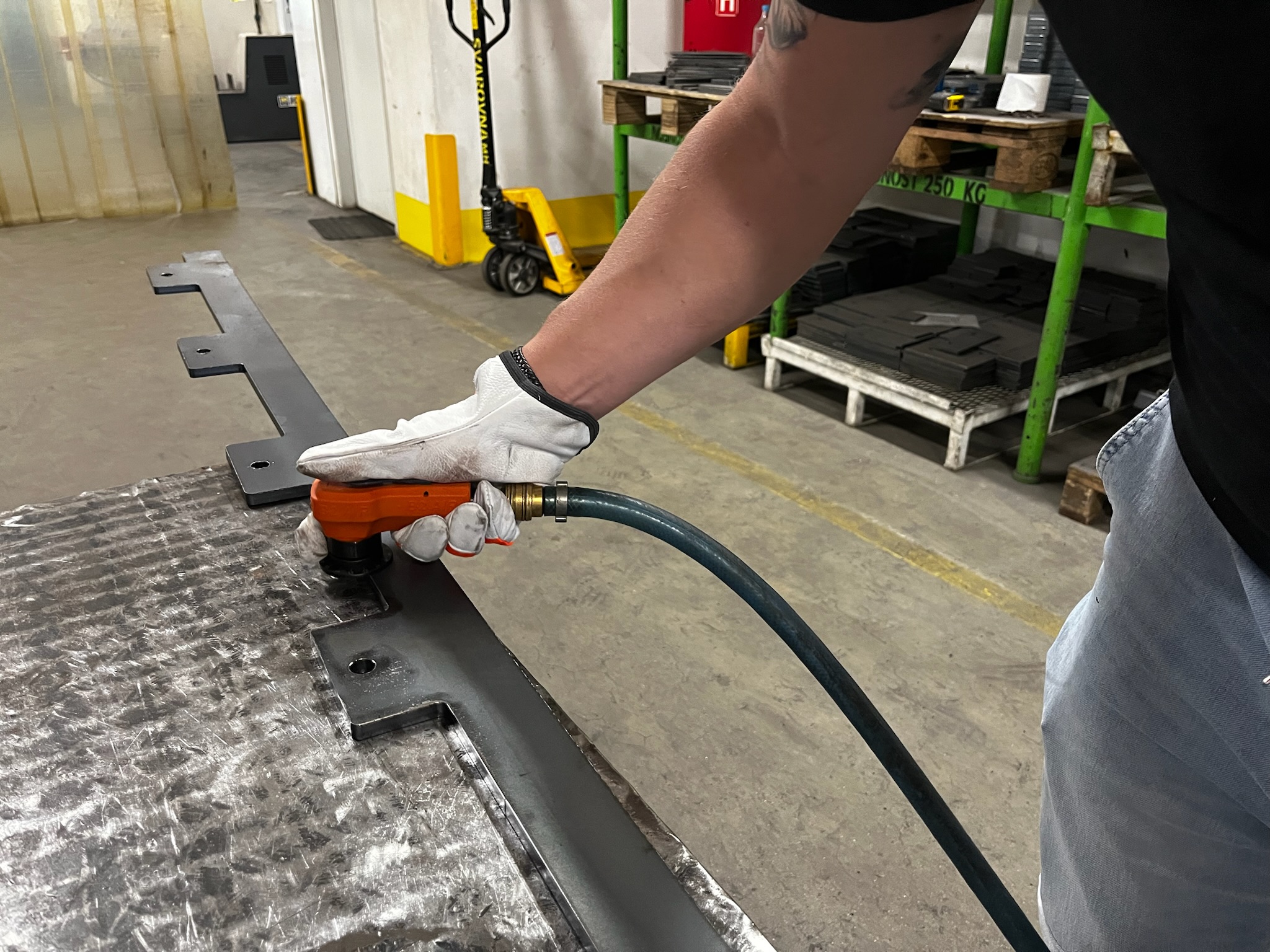

Designed for deburring and rounding edges of steel, stainless steel, aluminum and other workpieces.
Suitable for machining holes from the internal diameter of 7 mm / 0.27 in.

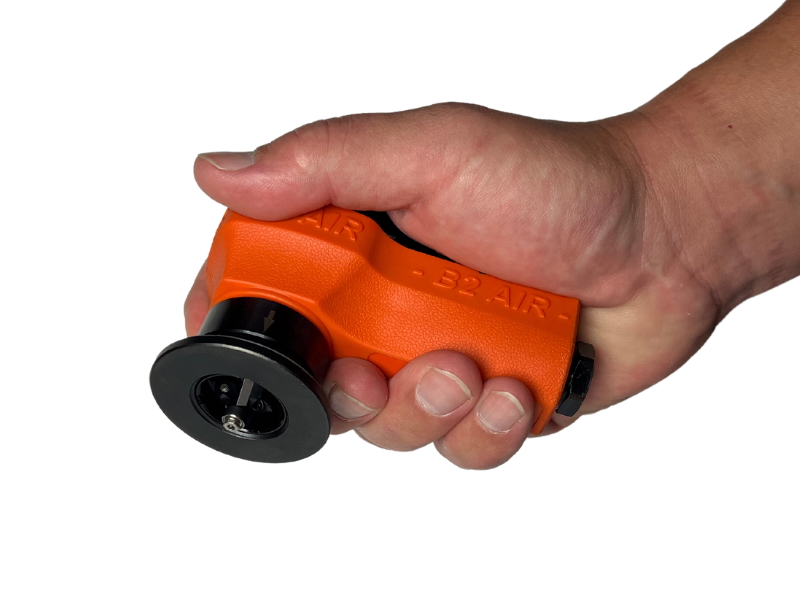

Compact design, great ergonomics.
Weight only 400 g / 0.88 lb.

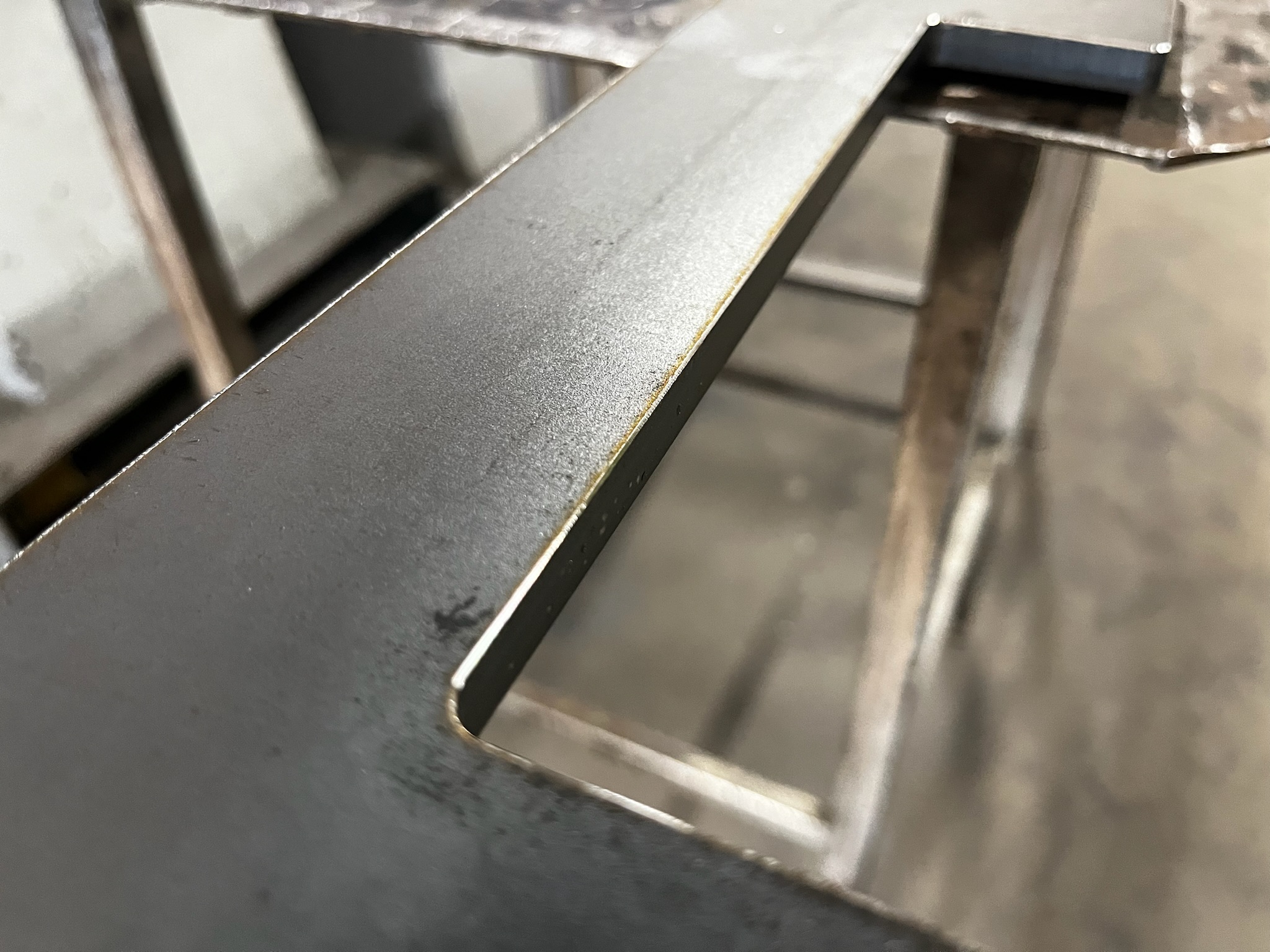

Edge machining by rounding R 1.5 mm / R 0.06 in - edge preparation before painting.
Powerful and reliable pneumatic drive.

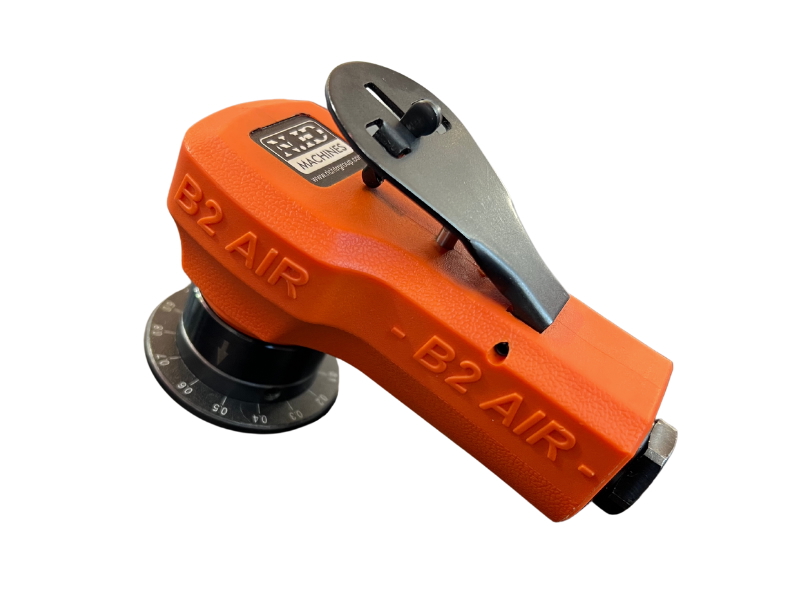

Precision machining scale allows for more precise machining.
Packed in a cardboard box.

Technical data:

Max. bevel width: 2 mm / 0.08 in as a maximum
Bevel angle: 45°
Rounding radius: R 1,5 mm / R 0.06 in
Speed: 23.000 rpm.
Feeding: manual
Air consumption: 320 l/min.
Weight: 400 g / 0.88 lb
Dimensions: 112 x 60 x 48 mm / 4.4 x 2.36 x 1.9 in
Number of cutting inserts: 3 pcs

Included it the price:

B2 AIR deburring system - fitted with head with cutting inserts.
Tools for an operator
User manual

Satisfaction Guaranteed
If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, BEVELLING MACHINES EUROPE s.r.o. will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.

Art.Nr.
Deburring system B2 AIR - fitted with head with cutting inserts	24200

Accessories:	Art.Nr.

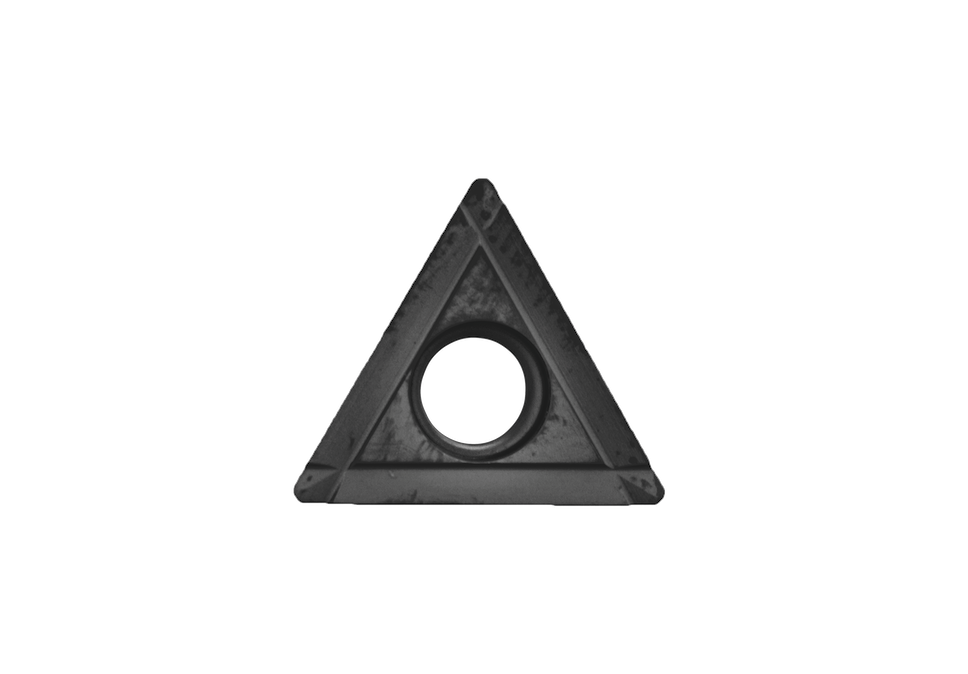

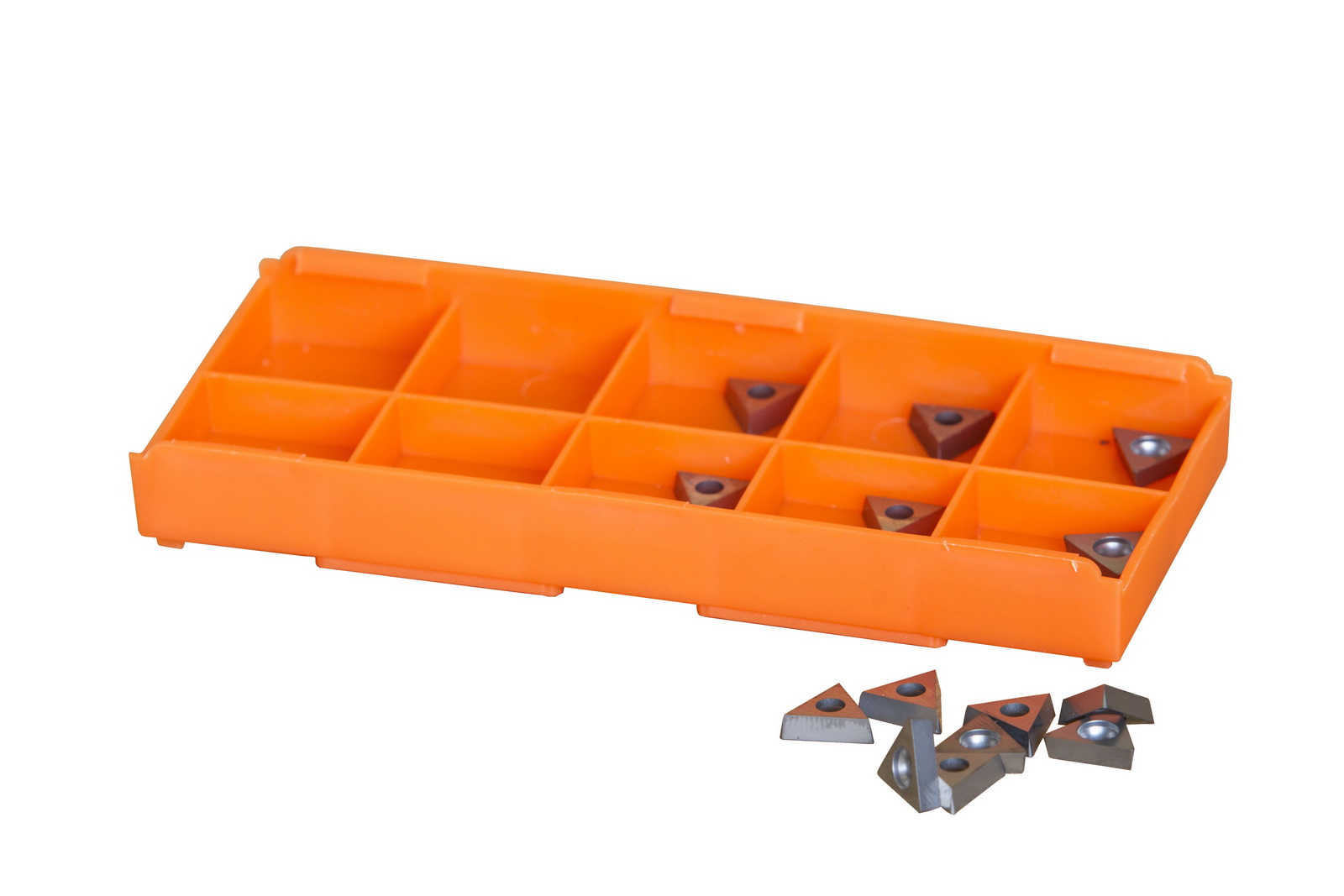

ECO Cutting inserts - three-sided - pack of 10 pcs	24201

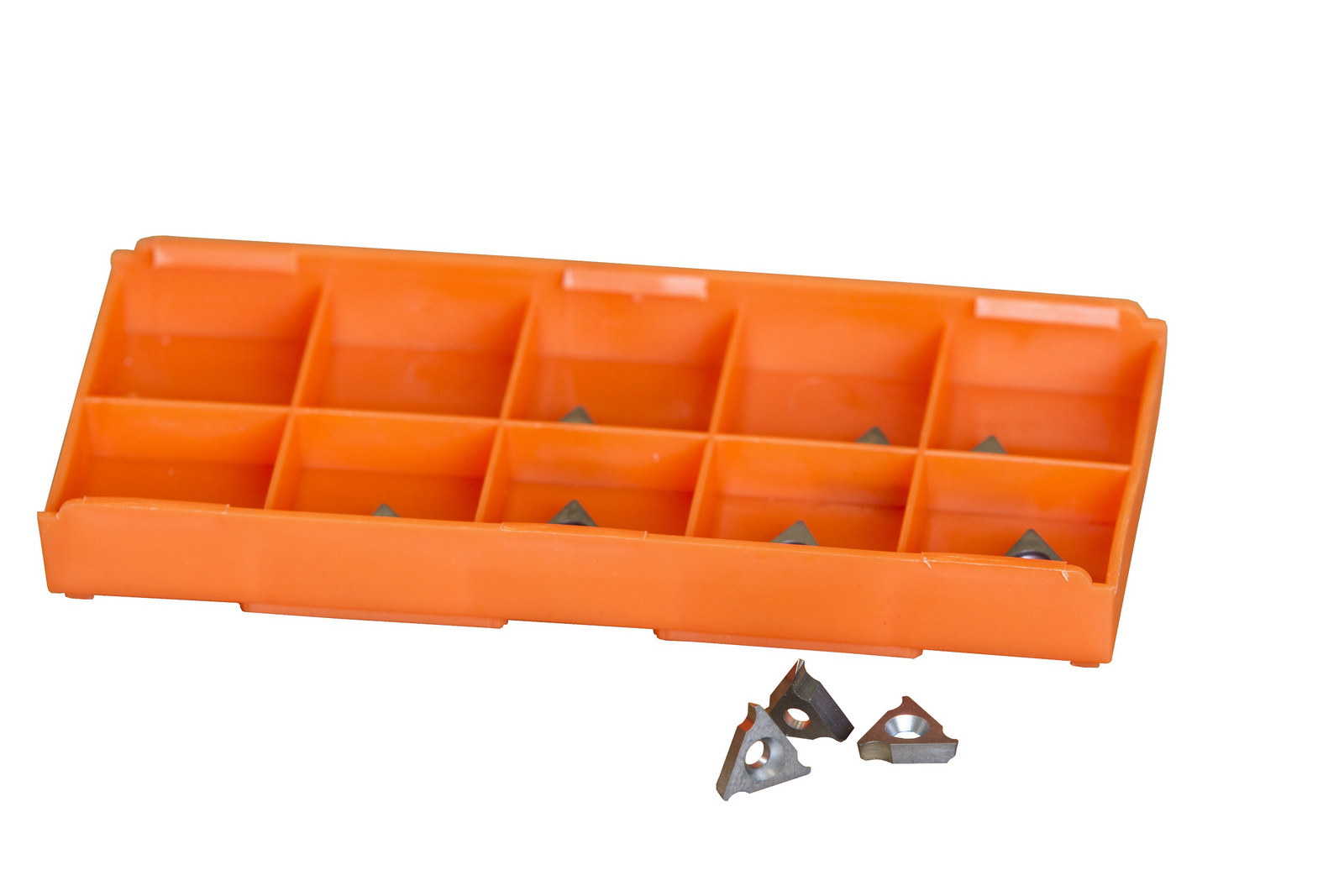

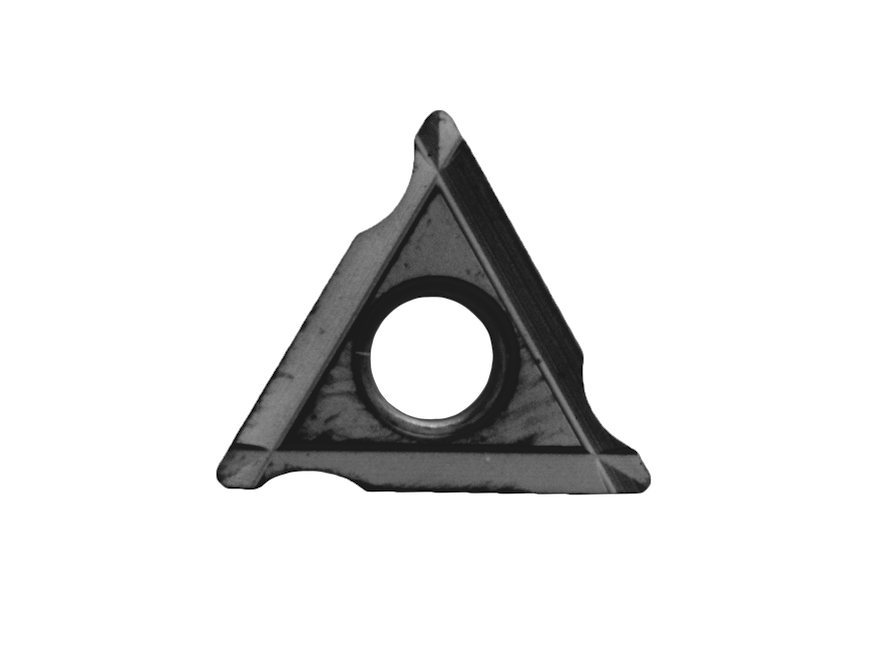

Cutting inserts radius R 1.5 mm / R 0.06 in - three-sided - pack of 10 pcs	24202
PREMIUM Coated cutting inserts - three-sided - pack of 10 pcs	24204

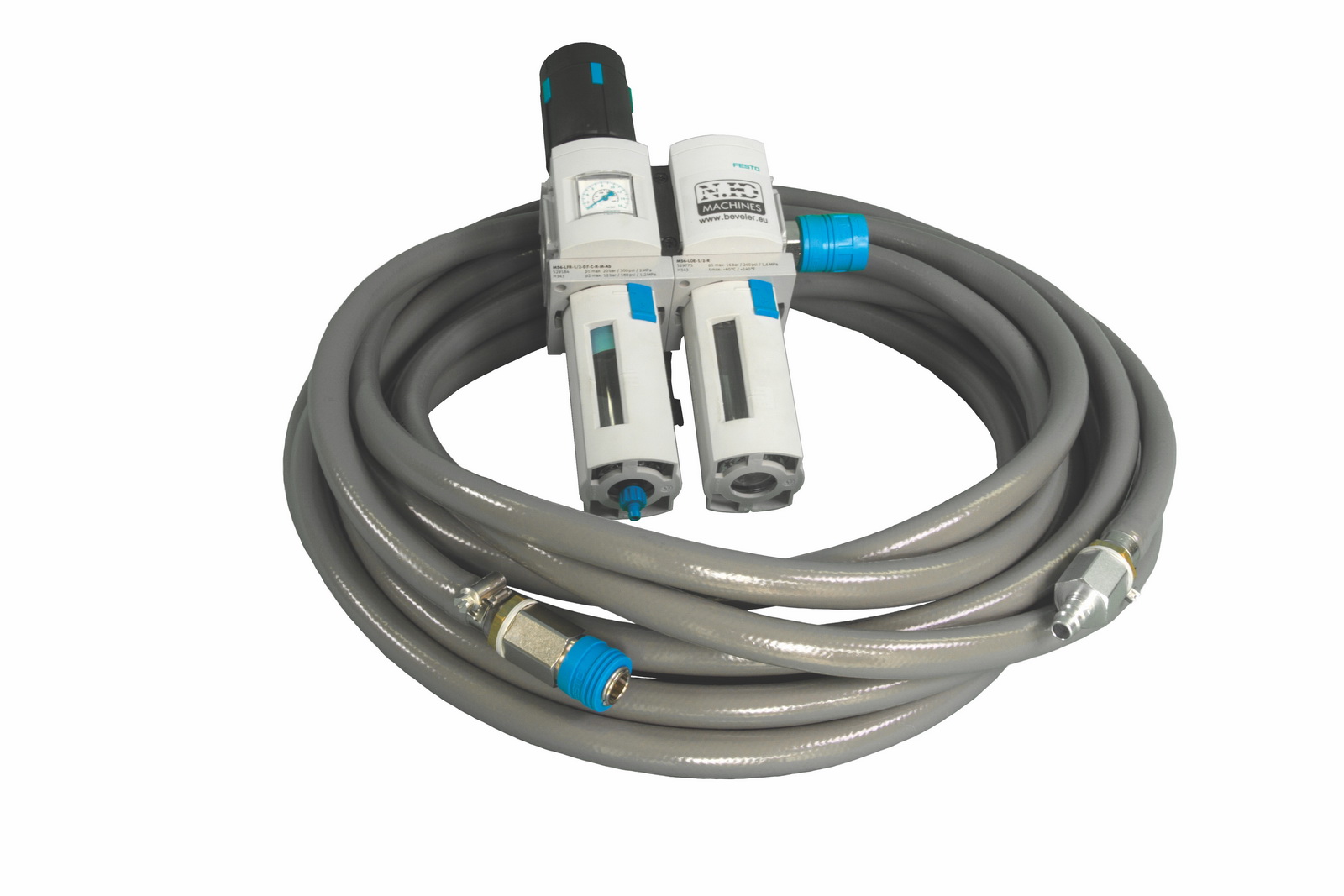

Pneumatic set with quick couplings - contains: FRL – filtration, regulator and lubrication unit, quick couplings, hoses 10 m / 394 in	24203
Screw for the inserts	7252F-04
Magnetic Swarf Remover Mag Brush – for collecting all magnetic materials - lenght of a magnetic bar 180 mm / 7.1 in	18654
Magnetic Sweeper Mag Brush Maxx Large – equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in	NMF0107
