B10 ELECTRA

Beveler B10 ELECTRA (max. width of bevel 0,4" / 10mm)

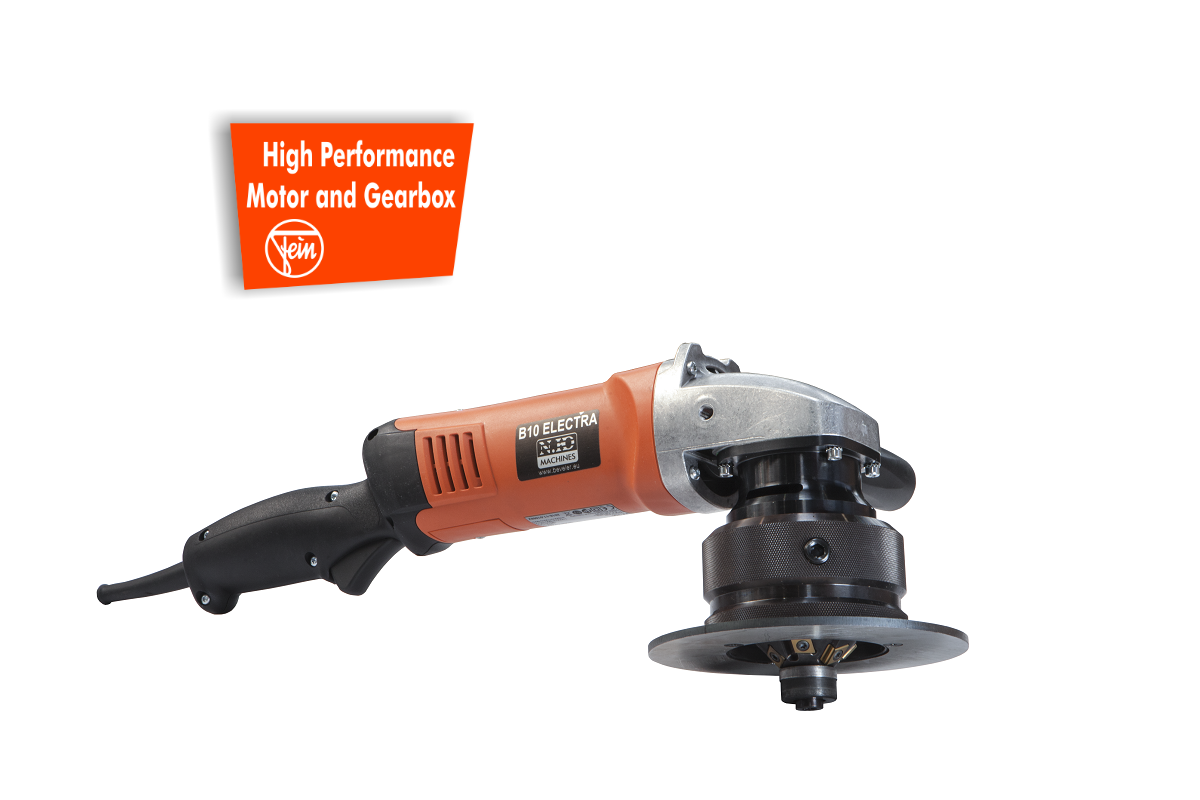

With High Performance Motor And Gearbox Fein Power Tools

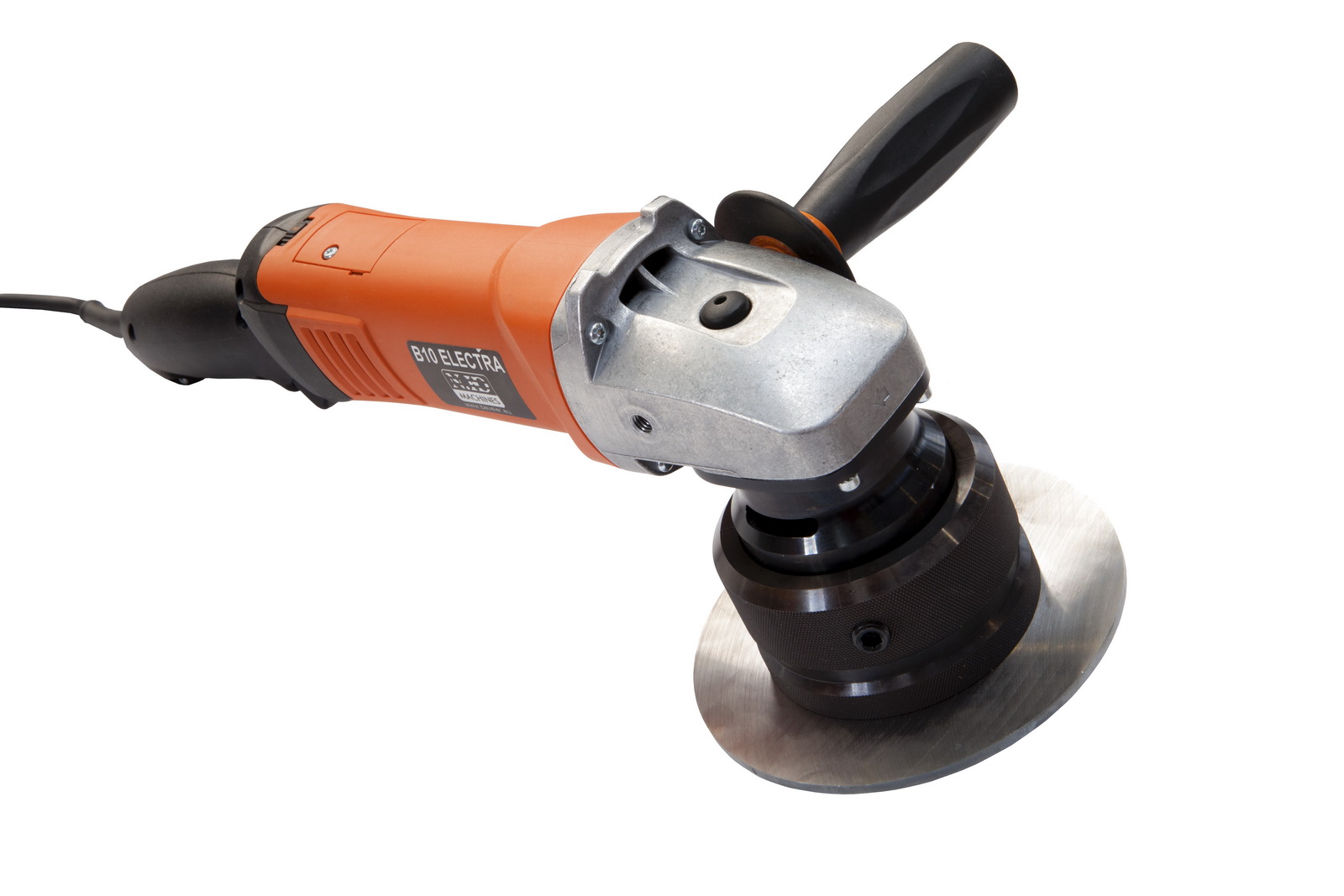

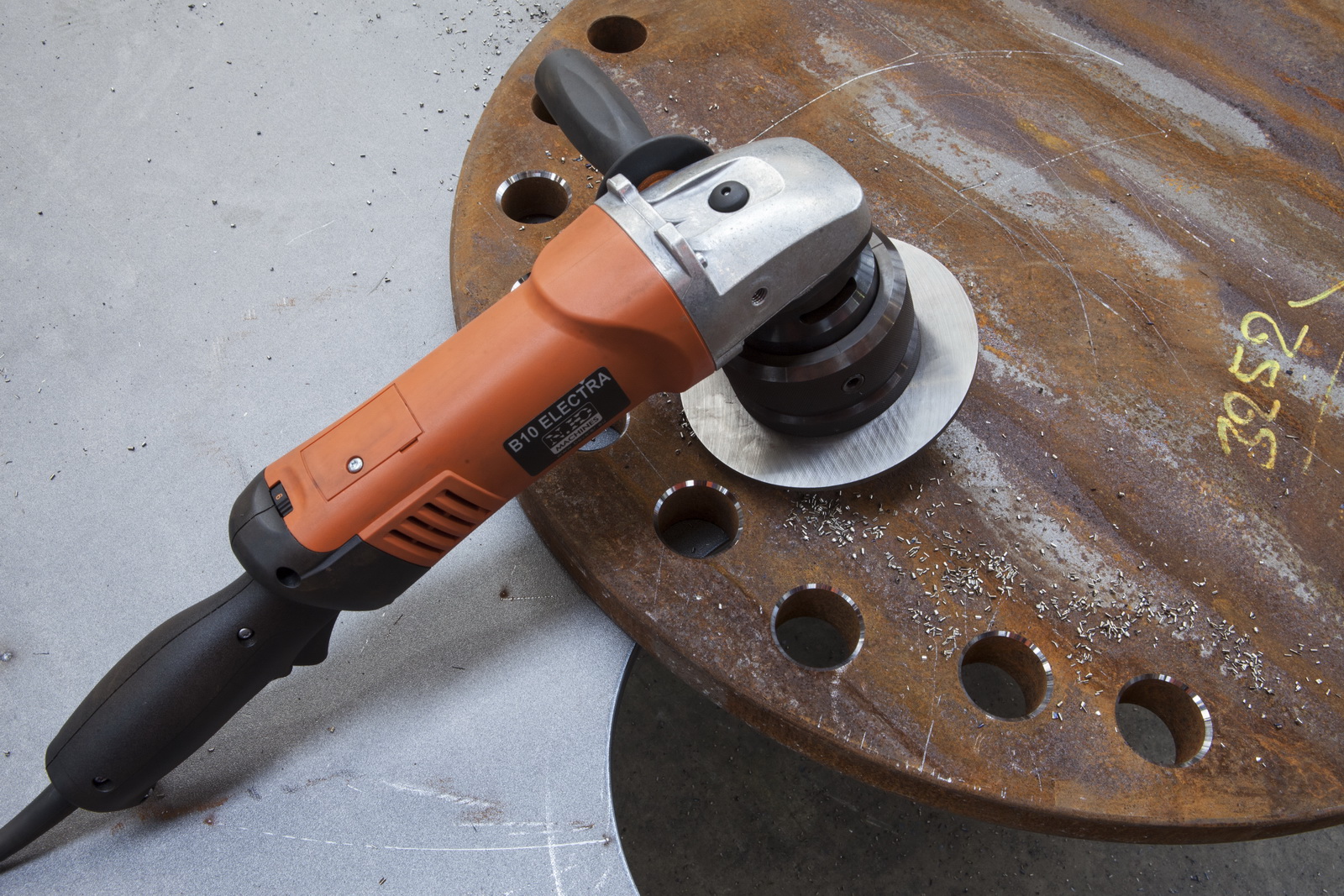

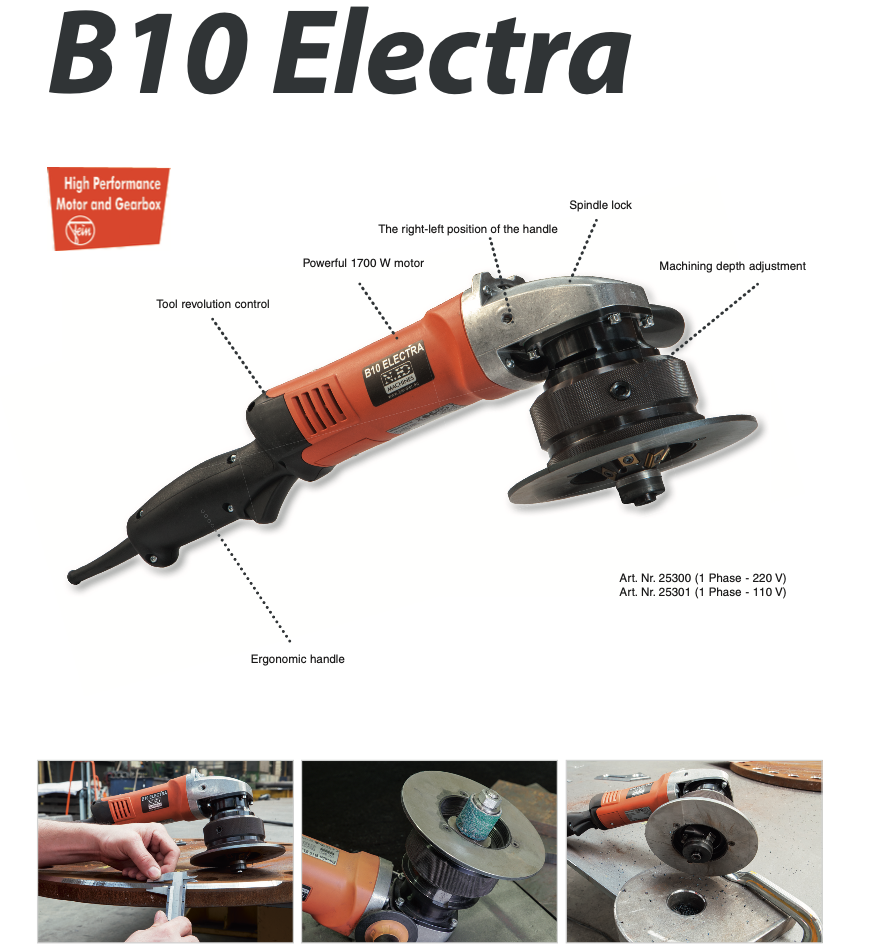

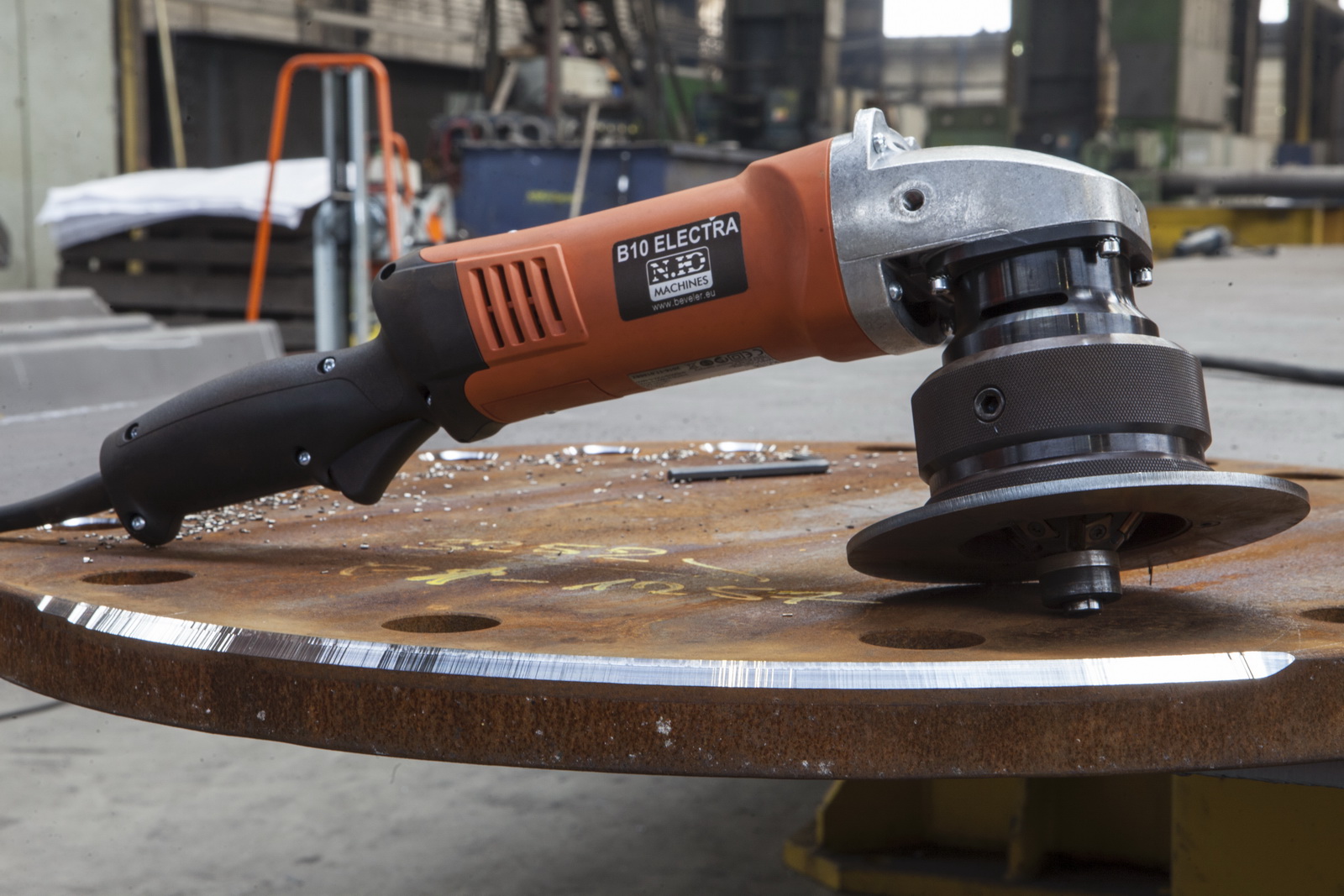

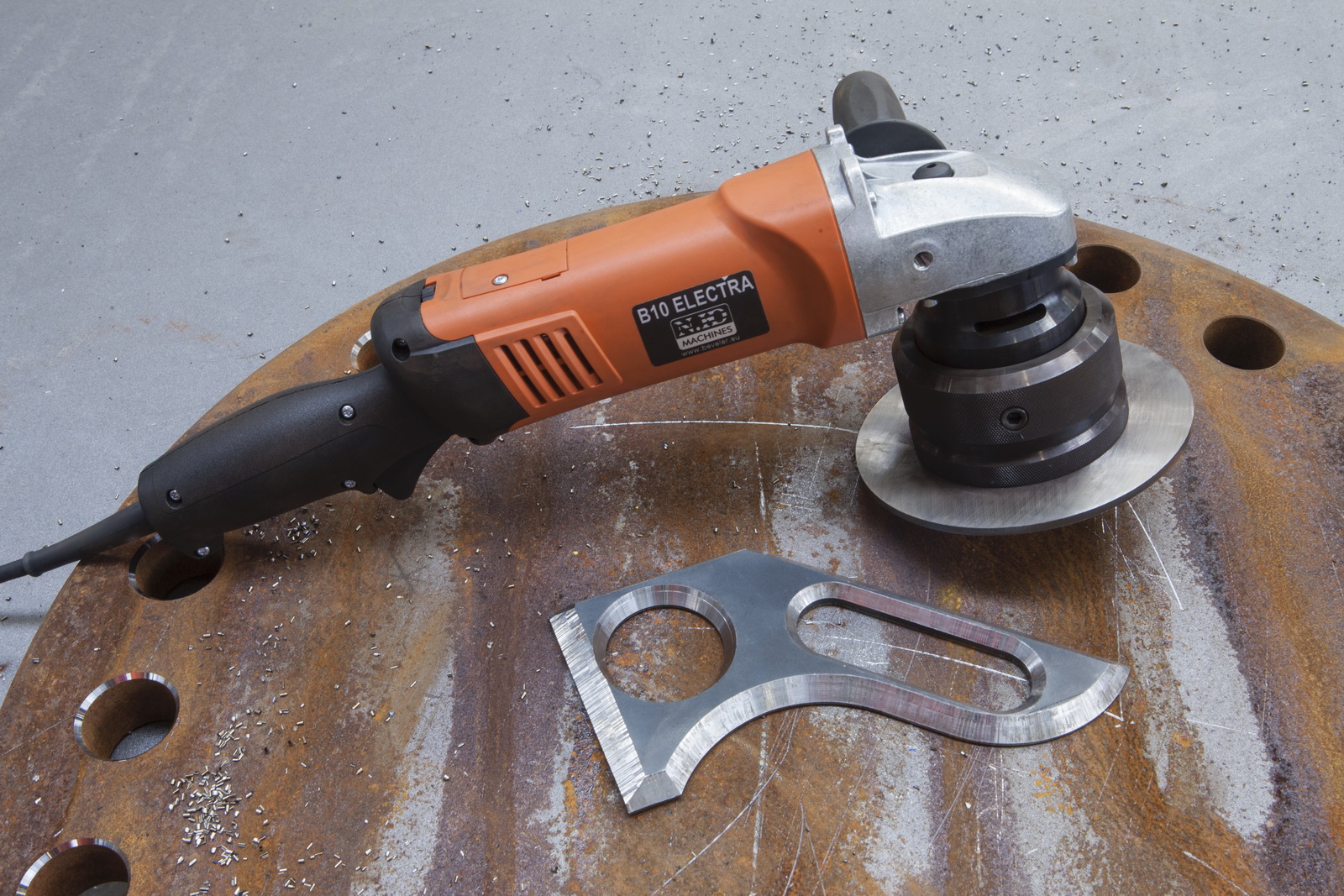

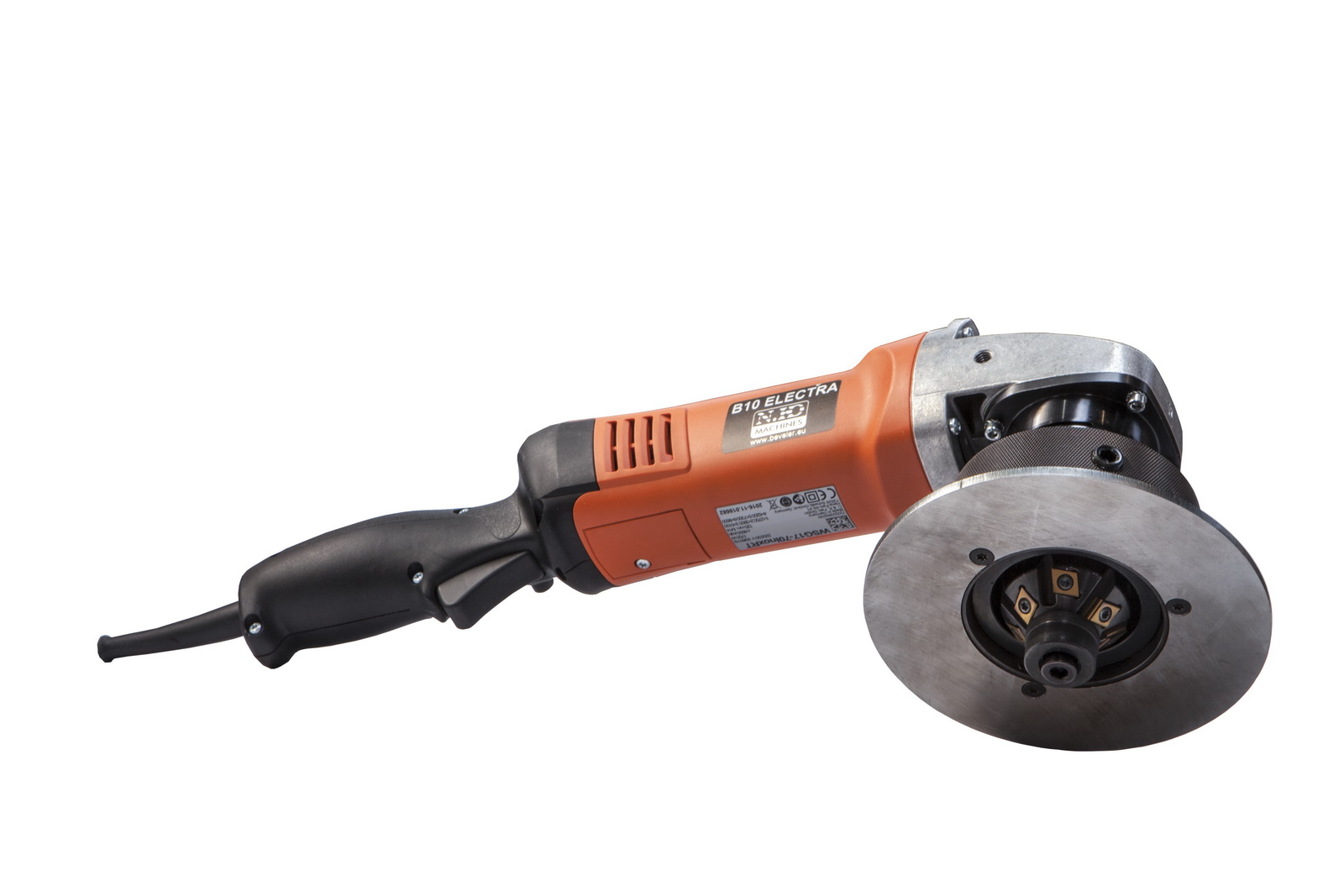

The beveler B10 ELECTRA is a heavy-duty hand held beveler which uses 6 indexable carbide inserts. The design allows straight edges, contours and cutouts to be beveled with ease.
Works with steel, aluminium, copper, plastic and other materials.
The precision dial scale allows precise adjustment of the chamfer height.
Replacable the tool holder for angle 30°, 37,5°, 45°, 50°, 60° other angles on demand.
ErgoGrip - unique, sophisticated and patent-pending ergonomic concept for fatigue-free work.
POWERtronic for enormous power, reserve capacity and extremely uniform speed under load.
Extensive operator protection thanks to KickBack Stop, self-start lock, soft start, and electronic overload protection.
AutoStop dead man's switch
Solid metal gear head.
Best vibration values in its class.
13 ft long, HO7 industrial cable.

Technical data:

Power input: 1500 W (1700 W)
(POWER FULL Motor made by FEIN TOOLS GERMANY for NKO MACHINES) About FEIN Power TOOLS
Voltage: 120V/60Hz (230 V/ 50 Hz)
No Load r.p.m.: 2 500 - 8 000RPM /(2700-8500 RPM)
Bevel width: 0-0,4" / 0 - 10 mm < 58 015 PSI / 400 MPa; 0 - 0,2" / 0 to 5mm > 58 015 PSI / 400 MPa
Net Weight: aprox. 13,3 lbs / 6 kg
Bevel angle: optional 30°, 37,5°, 45°, 50°, 60°, other angles on demand

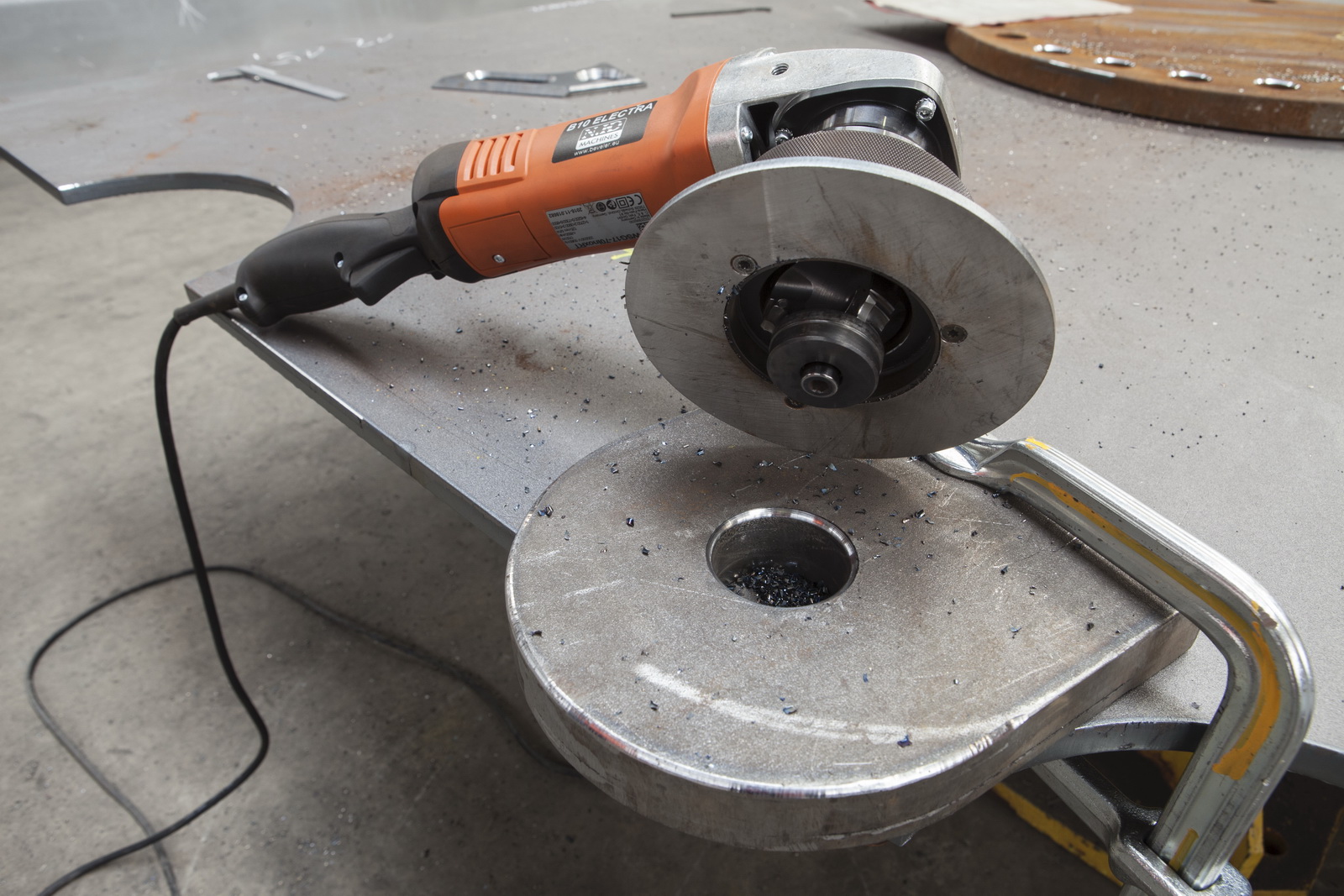

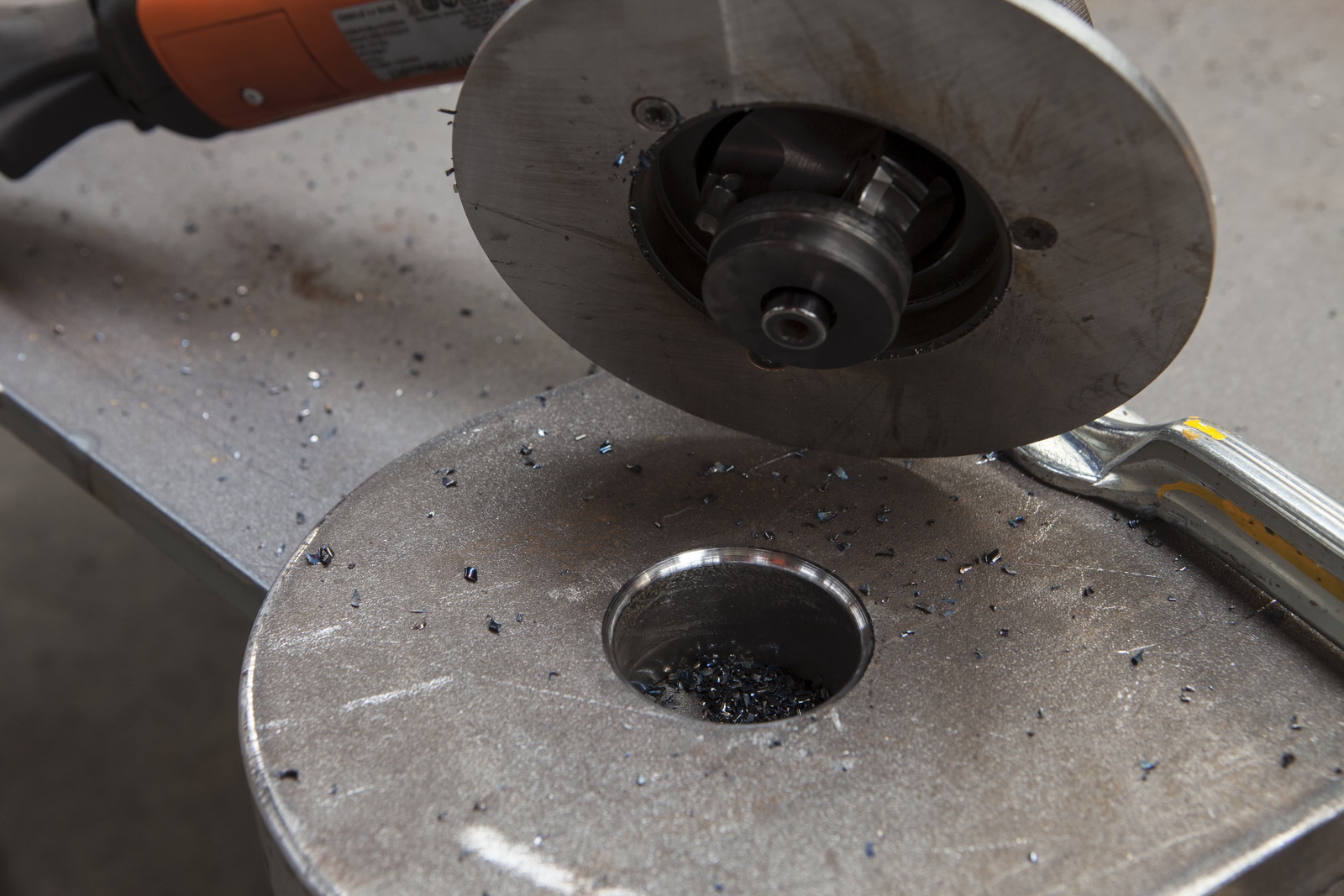

Bevelling of holes – minimal dimensions
Bevel angle α°	Minimal diameter of the hole in mm
30°	Ø 34mm
37,5°	Ø 28mm
45°	Ø 28mm
50°	Ø 28mm
60°	Ø 27mm
R 2,5mm	Ø 41mm
R 3,5/4mm	Ø 40mm

Satisfaction Guaranteed If you are not completely satisfied with B10 ELECTRA you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, Beveler USA INC will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods

Included in the price:

Beveler B10 ELECTRA
Needed tools for operation
1 operation manual

WITHOUT HEAD! Select the desired head angle

Art.Nr.	220V - 1 Phase	110V - 1 Phase
Bevelling and deburring system B10 ELECTRA	25300	25301

Accessories:	Art.Nr.
30° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 34 mm / 1.34 in	27223
37,5° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm [≈ 1 inch] / 1.10 in	27227

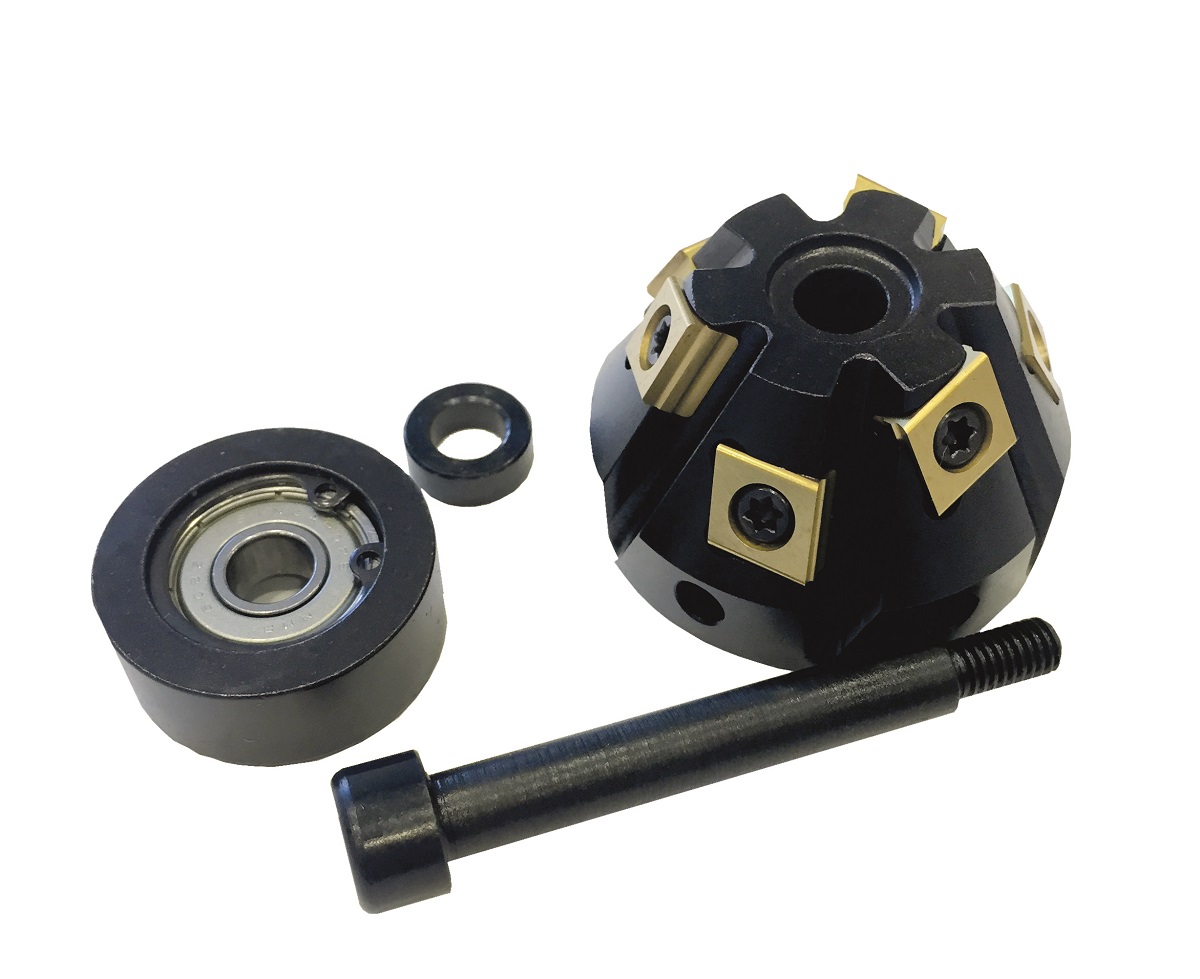

45° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm [≈ 1 inch] / 1.10 in	27222
50° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm [≈ 1 inch] / 1.10 in	27224
60° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 27 mm [≈ 1 inch] / 1.06 in	27240
Cutting head with non-standard angle - including inserts, screws, bolts and roller	27XXX
Coated cutting inserts - four-sided - pack of 10 pcs	27231

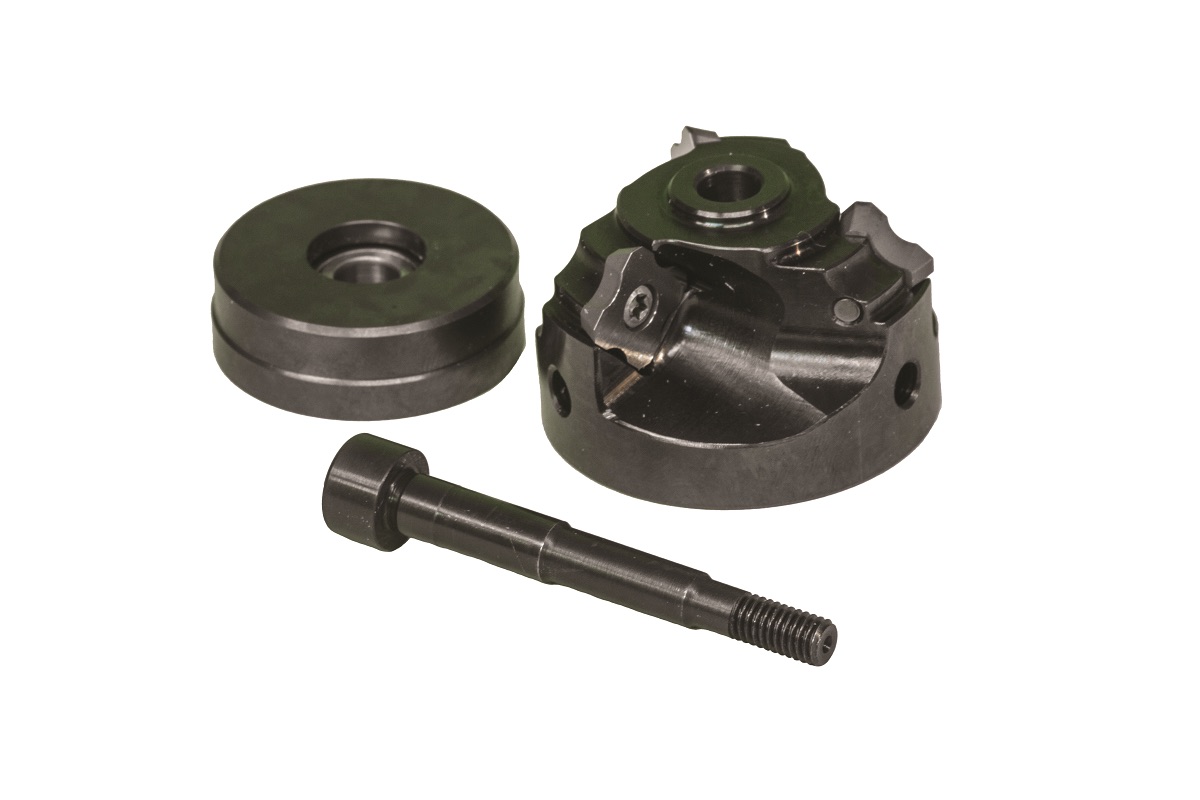

Edge rounding cutter R2,5 mm [≈ 1 inch] / 0.08 in - including inserts, screws, bolts and roller - guide roller diameter Ø 41 mm [≈ diameter of a golf ball] / 1.61 in	27234
Cutting inserts for rounding edges R2,5 mm [≈ 1 inch] / 0.08 in - four-sided - pack of 10 pcs	26109
Edge rounding cutter R3,5 mm / 0.12 in and R4 mm / 0.16 in - including inserts R3,5 mm / 0.12 in, screws, bolts and roller - guide roller diameter Ø 40 mm [≈ diameter of a golf ball] / 1.57 in	27233
Cutting inserts for rounding edges R3,5 mm / 0.12 in - four-sided - pack of 10 pcs	26110
Cutting inserts for rounding edges R4 mm / 0.16 in - four-sided - pack of 10 pcs	26111
Screw for the impeler / guding roll - to clamp the head on B10 and B15 ELECTRA machines	25250_16
Screw for the cutting inserts	27241
Screw for the radius / rounding inserts	27242
Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in	NMF0107
